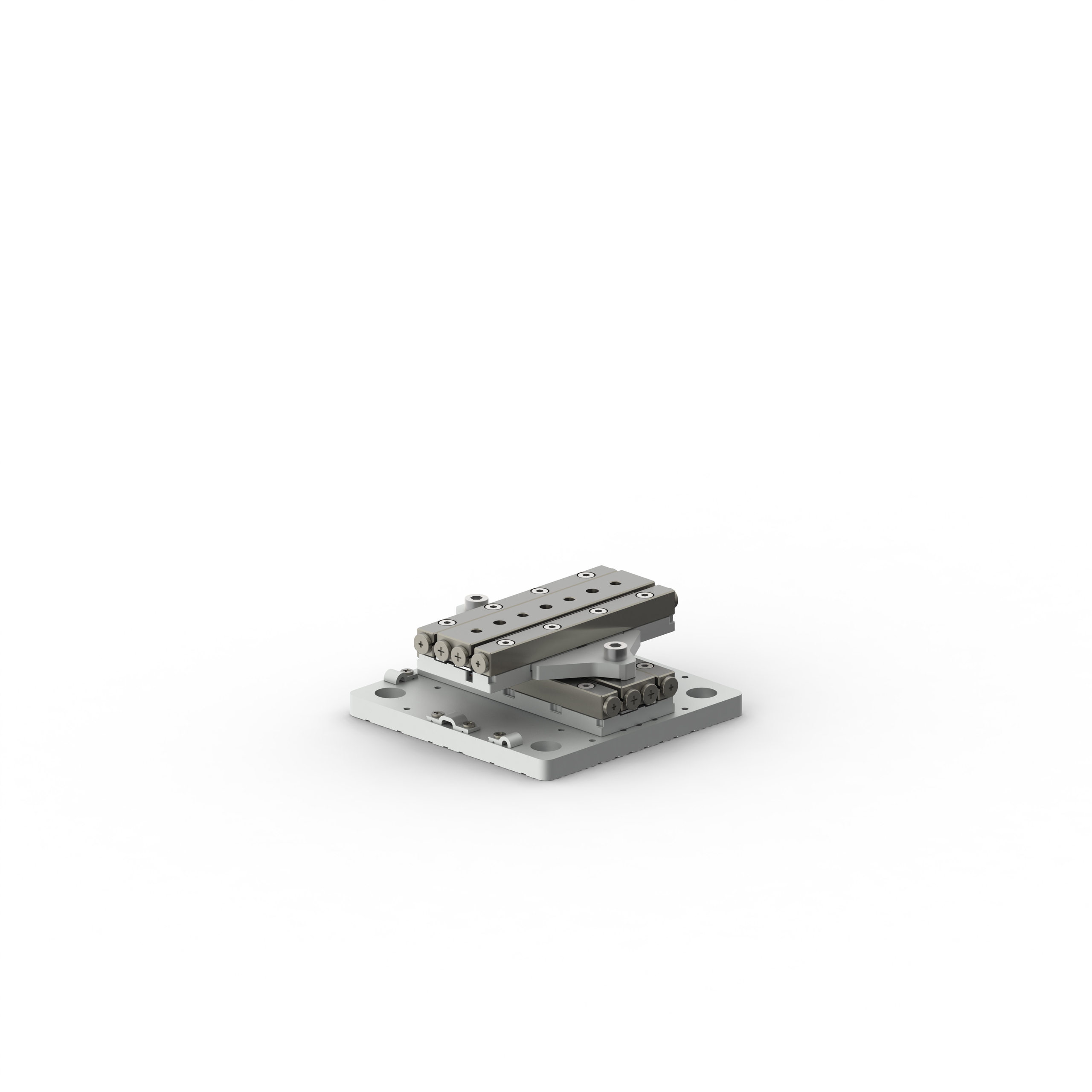

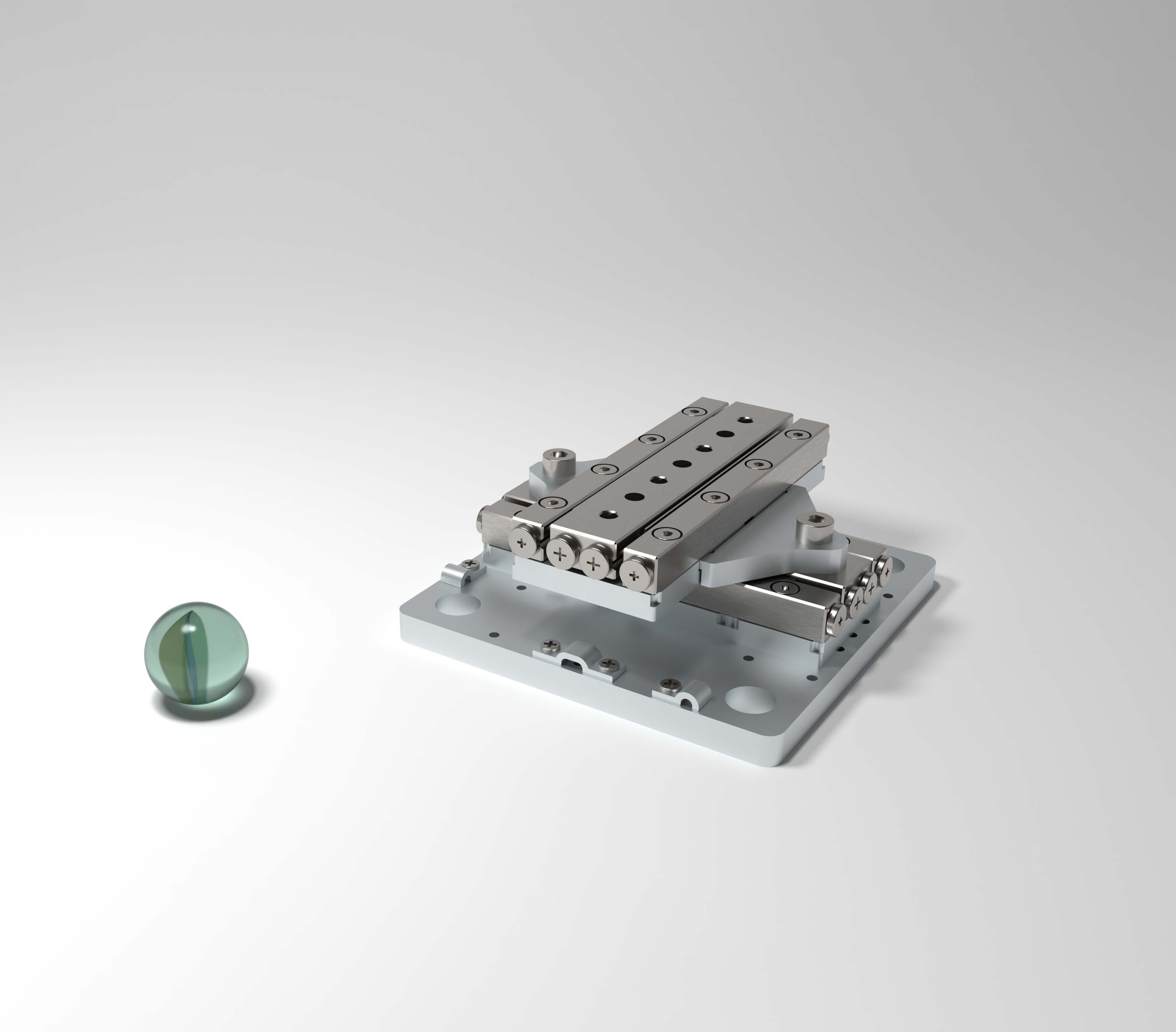

XY-SLC24:60

Based on two SLC-2460 linear stages with a travel range of 35 mm each, the system is able to handle payloads of up to 20 N.

Send inquiry Specifications

Specifications

Download Spec Sheet
Download Spec Sheet Mechanical
Mechanical
Degrees of Freedom 2
Stages used SLC-2460
Travel [mm] 35 (X); 35 (Y)
Payload [N] 30
  Closed-Loop
Closed-Loop
Sensor Resolution MCS2 [nm] 1 (S)

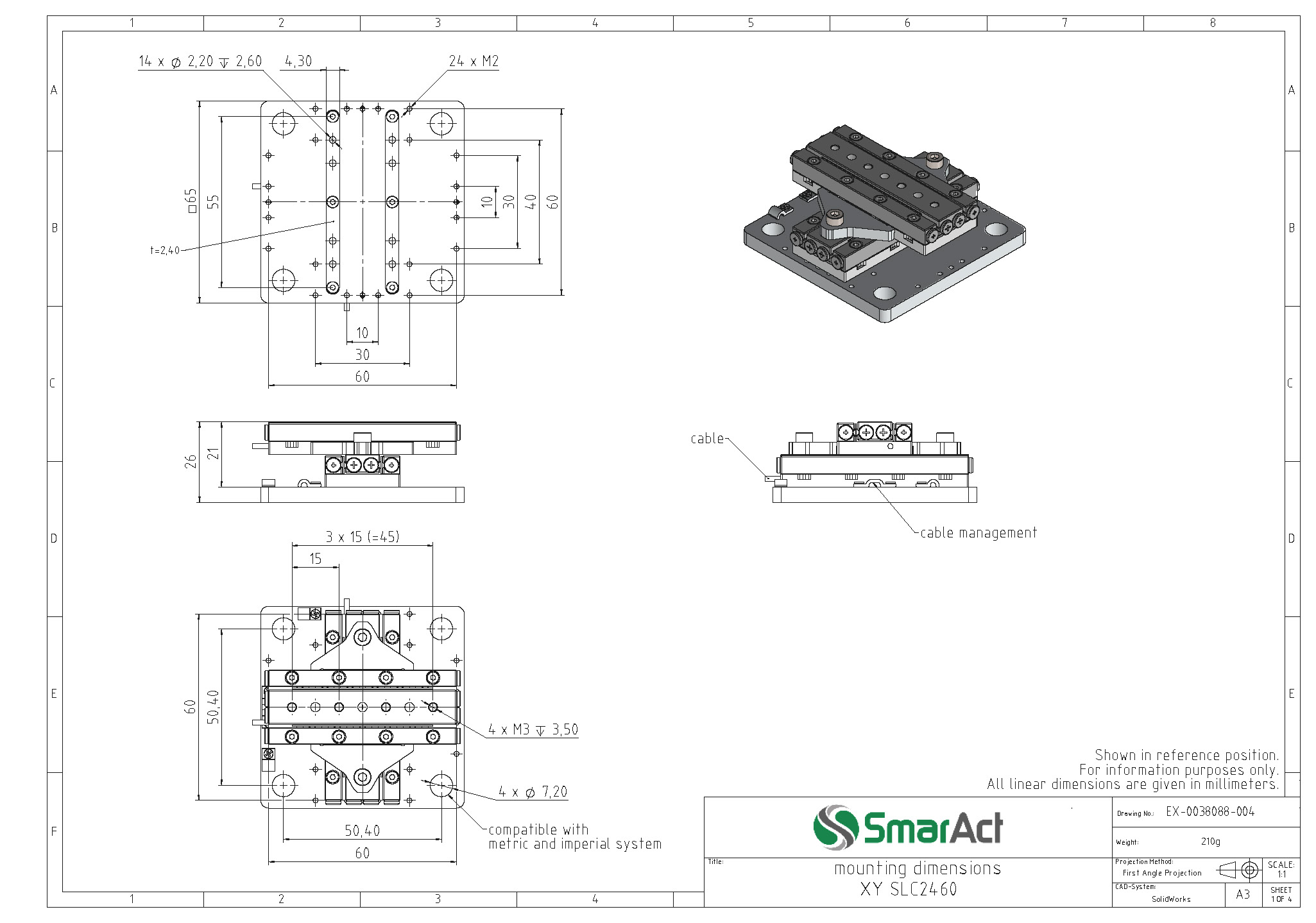

  Breadboard Mount
Breadboard Mount
Dimensions [mm] 65 x 65 x 26 (L x W x H)
Height of Platform above Ground [mm] 26
  Direct Mount
Direct Mount
Dimensions [mm] 60 x 60 x 21 (L x W x H)
Height of Platform above Ground [mm] 21

Downloads

Accessories

MCS2

The MCS2 is SmarAct’s most versatile and modular control system.

Software Development Kits

Easy integration of SmarAct motion products into existing customer software solutions

Related Products

SLC-2460 - Linear Piezo Stage

Travel range: 35 mm
Length: 60 mm
Weight: 72 g
