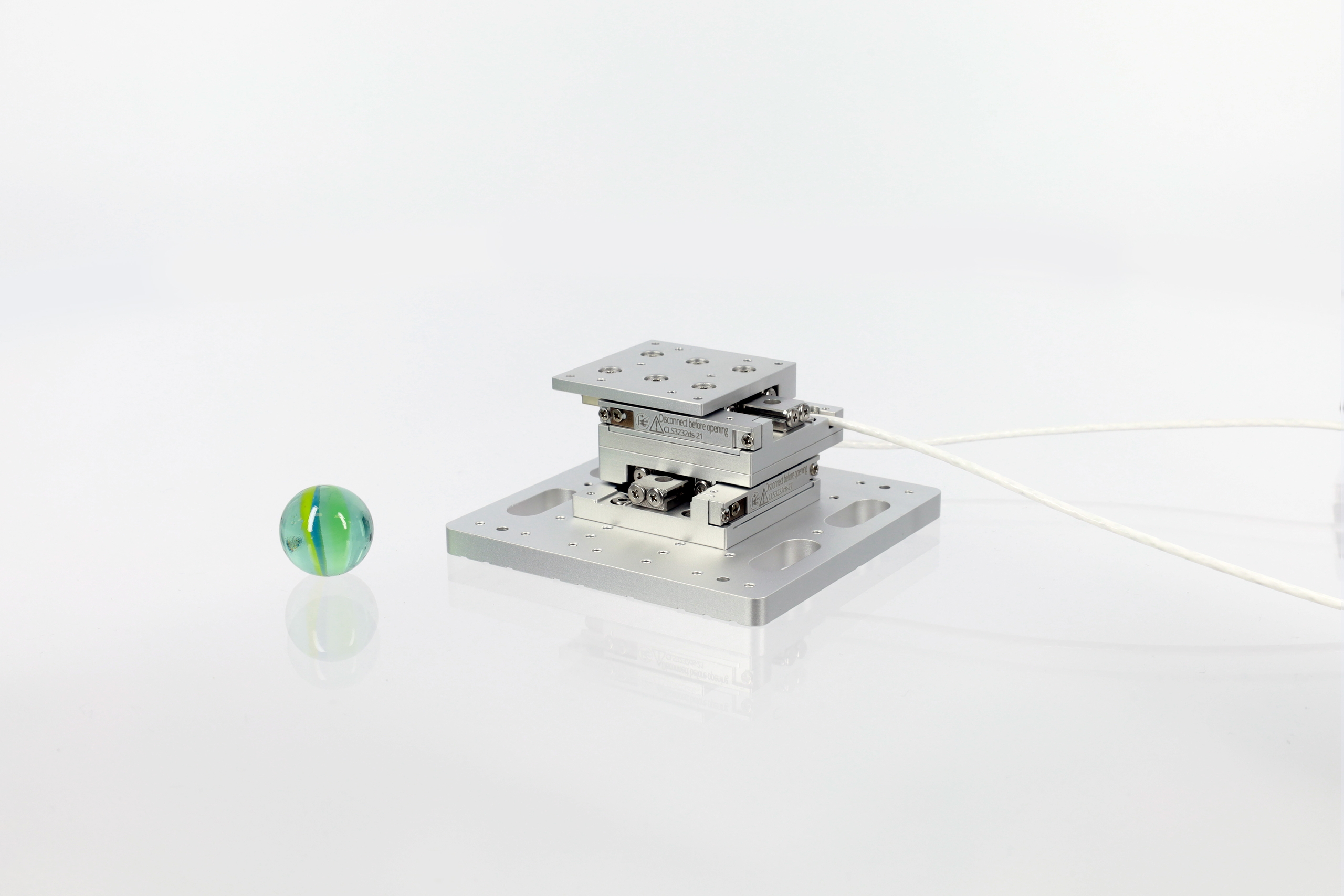

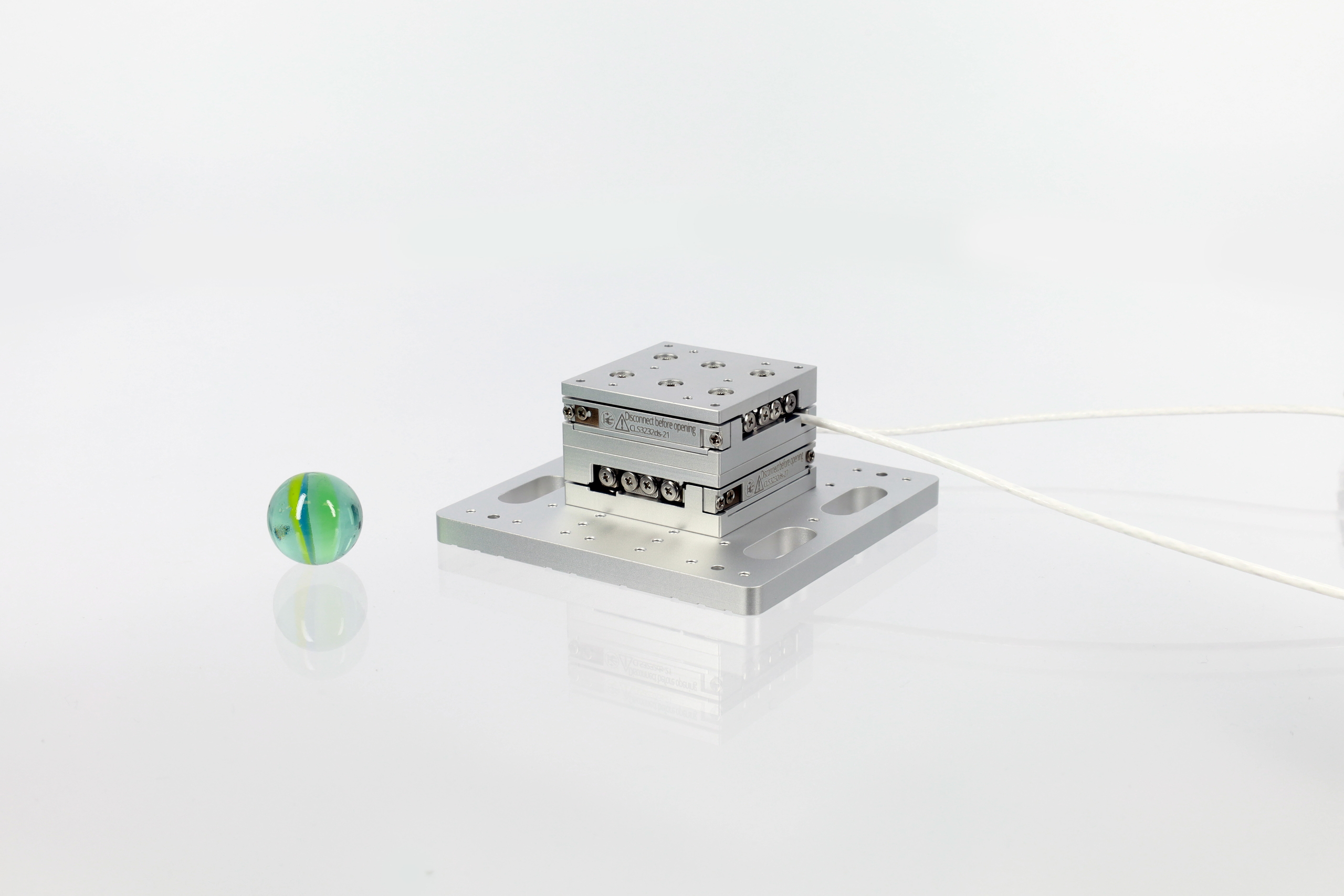

XY-CLS32:32

Based on two CLS-3232 linear stages with a travel range of 21 mm each, the system is able to handle payloads of up to 20 N and is fully compatible to the SmarAct modular system.

Send inquiry Specifications

Specifications

Download Spec Sheet
Download Spec Sheet Mechanical
Mechanical
Degrees of Freedom 2
Stages used CLS-3232
Travel [mm] 21 (X); 21 (Y);
Payload [N] 20
  Closed-Loop
Closed-Loop
Sensor Resolution MCS2 [nm] 1 (S)

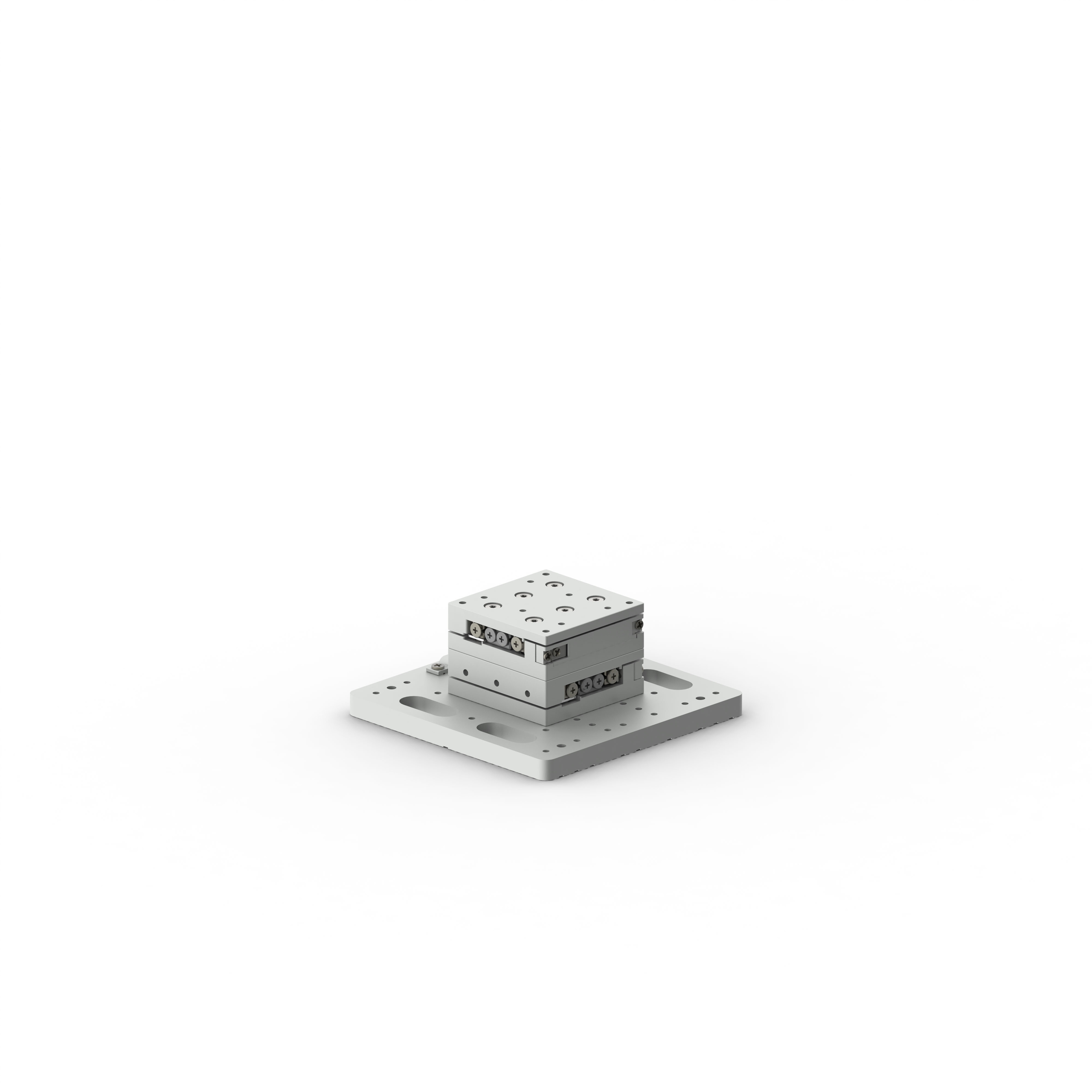

  Breadboard Mount
Breadboard Mount

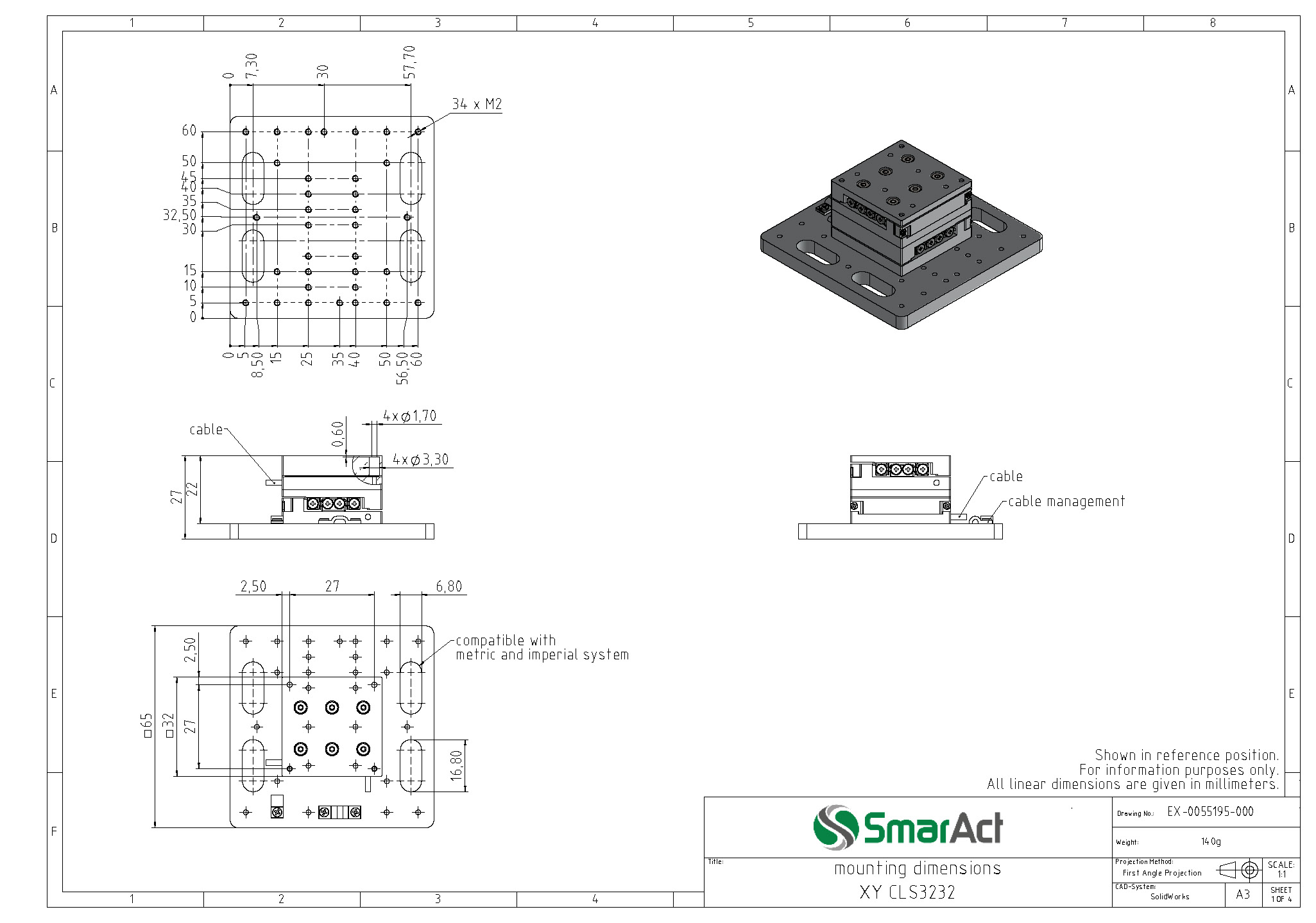

Dimensions [mm] 65 x 65 x 27 (L x W x H)
Height of Platform above Ground [mm] 27
  Direct Mount
Direct Mount
Dimensions [mm] 32 x 32 x 22 (L x W x H)
Height of Platform above Ground [mm] 22
