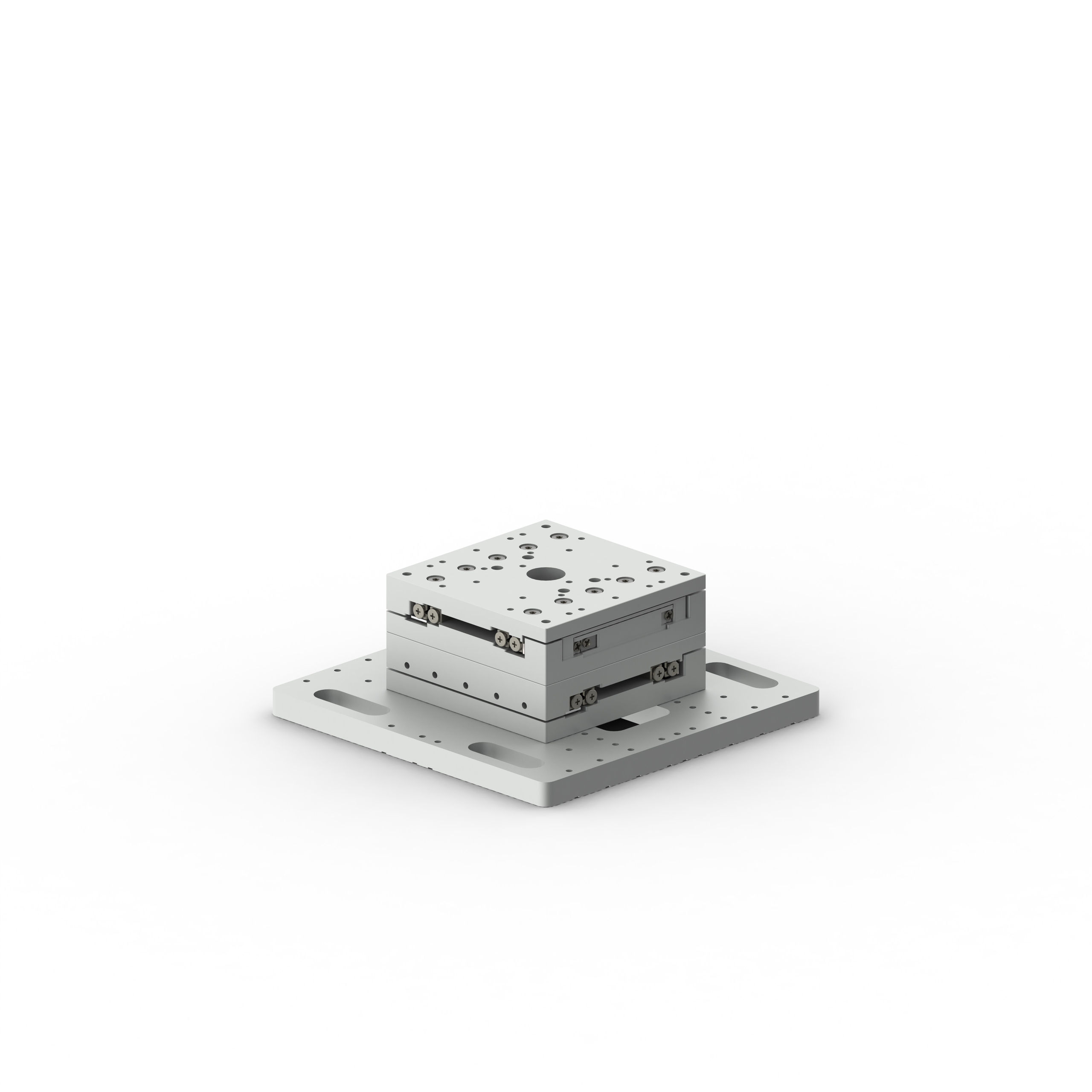

XY-CLS52:52

Based on two CLS-5252 linear stages with a travel range of 31 mm each, the system is able to handle payloads of up to 20 N and is fully compatible to the SmarAct modular system.

Send inquiry Specifications

Specifications

Download Spec Sheet
Download Spec Sheet Mechanical
Mechanical
Degrees of Freedom 2
Stages used CLS-5252
Travel [mm] 31 (X); 31 (Y);
Payload [N] 20
  Closed-Loop
Closed-Loop
Sensor Resolution MCS2 [nm] 1 (S)
  Breadboard Mount
Breadboard Mount

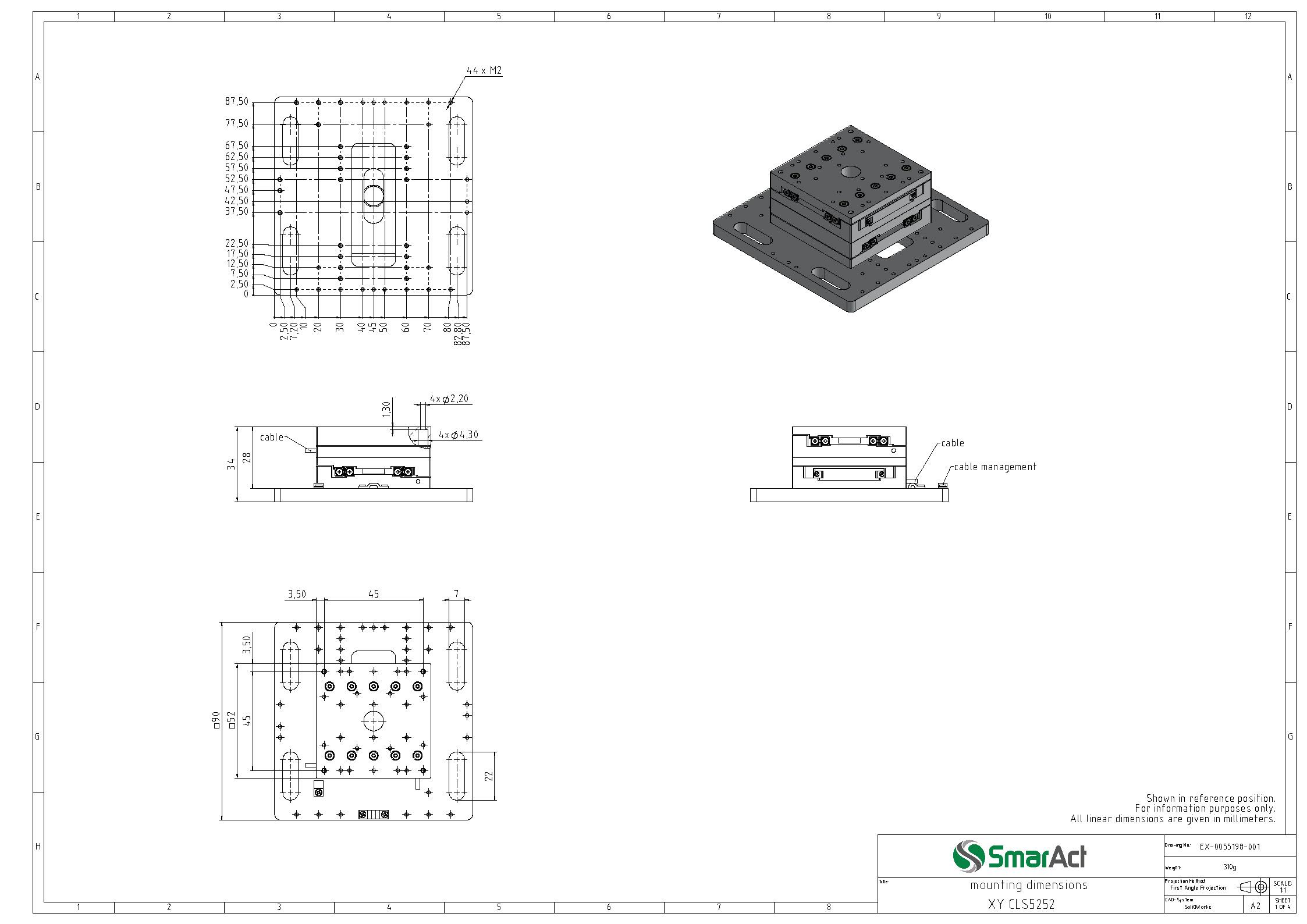

Dimensions [mm] 90 x 90 x 34 (L x W x H)
Height of Platform above Ground [mm] 34
  Direct Mount
Direct Mount
Dimensions [mm] 52 x 52 x 28 (L x W x H)
Height of Platform above Ground [mm] 28

Downloads

Accessories

MCS2

The MCS2 is SmarAct’s most versatile and modular control system.

Software Development Kits

Easy integration of SmarAct motion products into existing customer software solutions

Related Products

CLS-5252 - Linear Stage with EDU

The smallest one of the CLS-52 linear stages offers a footprint of 52 x 52 mm, a travel range of 31 mm and an aperture of 9 mm in diameter. Furthermore, it is able to handle payloads of up to 20 N.
