XY-SLC17:22

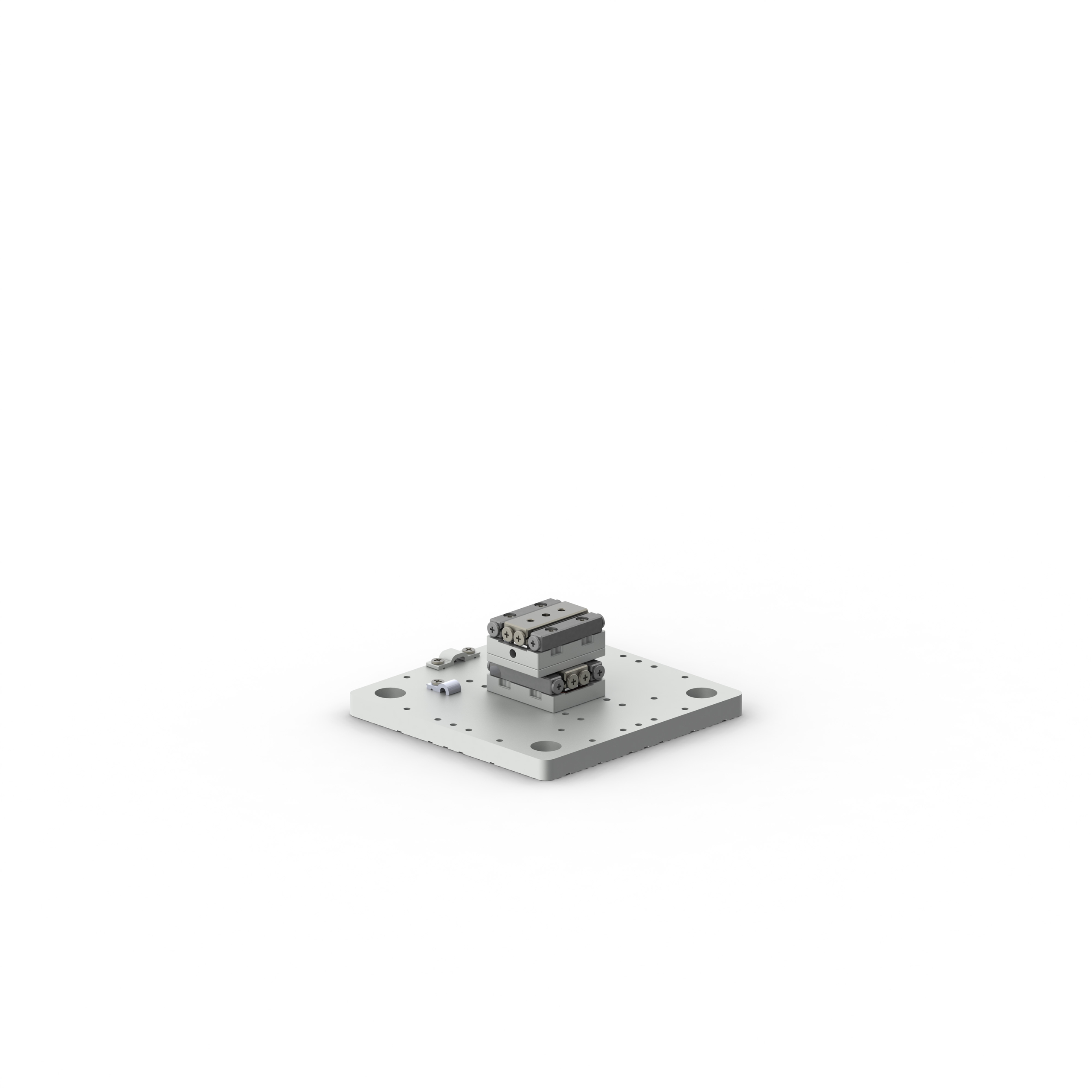

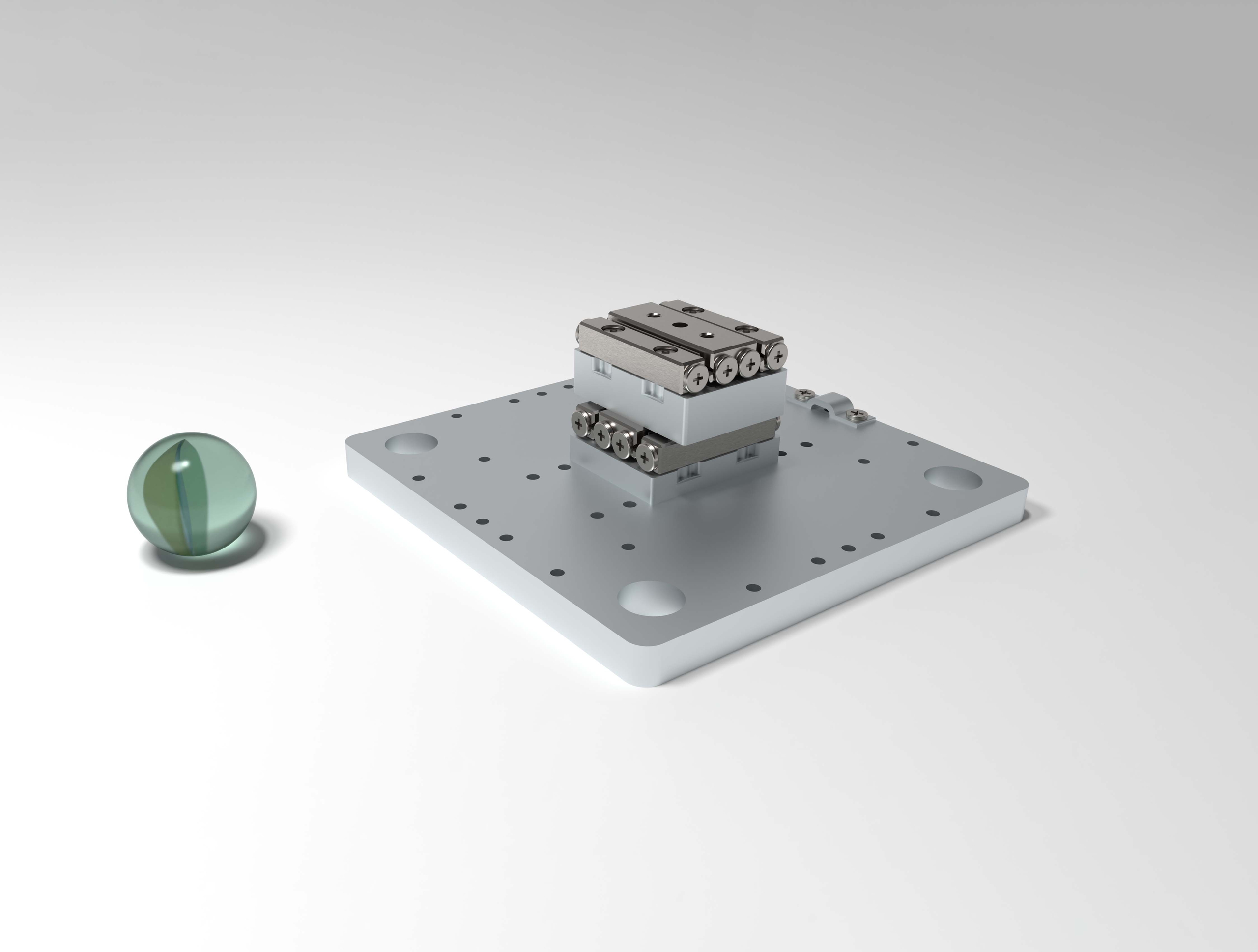

Based on two SLC-1720 miniaturized linear stages with a travel range of 12 mm each, the system is able to handle payloads of up to 20 N.

Download Spec Sheet

Download Spec Sheet	Mechanical
Mechanical
Degrees of Freedom	2
Stages used	SLC-1720
Travel [mm]	12 (X); 12 (Y)
Payload [N]	20
	Closed-Loop
Closed-Loop
Sensor Resolution MCS2 [nm]	1 (S)

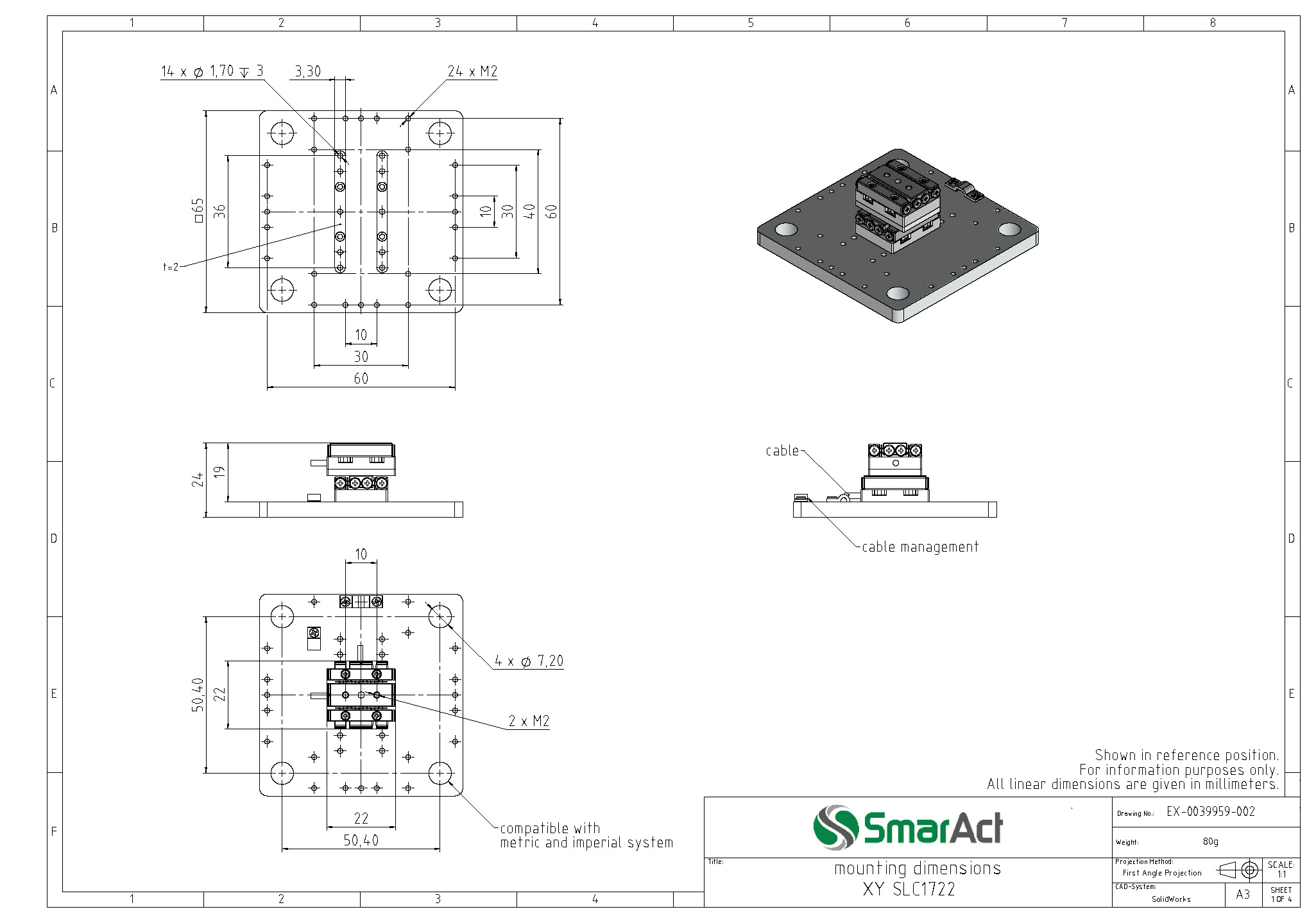

	Breadboard Mount
Breadboard Mount
Dimensions [mm]	65 x 65 x 24 (L x W x H)
Height of Platform above Ground [mm]	24
	Direct Mount
Direct Mount
Dimensions [mm]	22 x 22 x 19 (L x W x H)
Height of Platform above Ground [mm]	19
